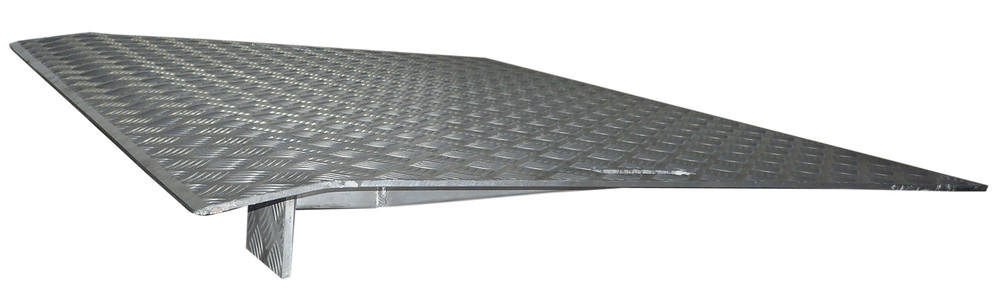

Bridge plate
Dimensions - width x depth x height (mm):
1250 x 995 x 120
|
Load capacity (kg):
1200
|
Weight (kg):
35,0
Lightly but strong aluminium construction Easy and safelty handling Integrated grip holes With positioning aids that also secure against slipping Inclined and chamfered access areas Anti-slip surface.

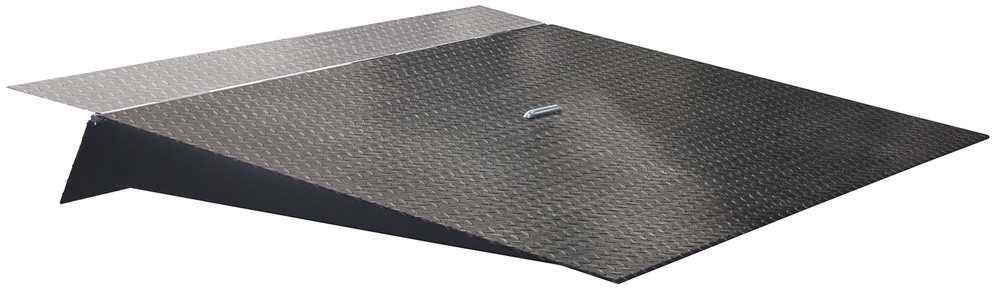

Ramp with movable lip
Dimensions - width x depth x height (mm):
2000 x 1815 x 200
|
Lip depth:
300
|
Load capacity (kg):
7500
|
Weight (kg):
282,5
Welded steel construction The entire area of the ramp is resting on the ground when the lift truck drives in It rises from 0 to 200 mm Movable lip for further height levelling Only to be used on flat surfaces with full support of the side rails Height under the lip 190 mm Lip 10/12 mm at front, angled at 10° Chain with hook on both sides to prevent shifting With retractable lifting stirrup for transporting the ramp by lift truck Industrial paint.
